| Brand Name |
BPOVO |
| Model Number |
BO-X3-1000A |
| Type |

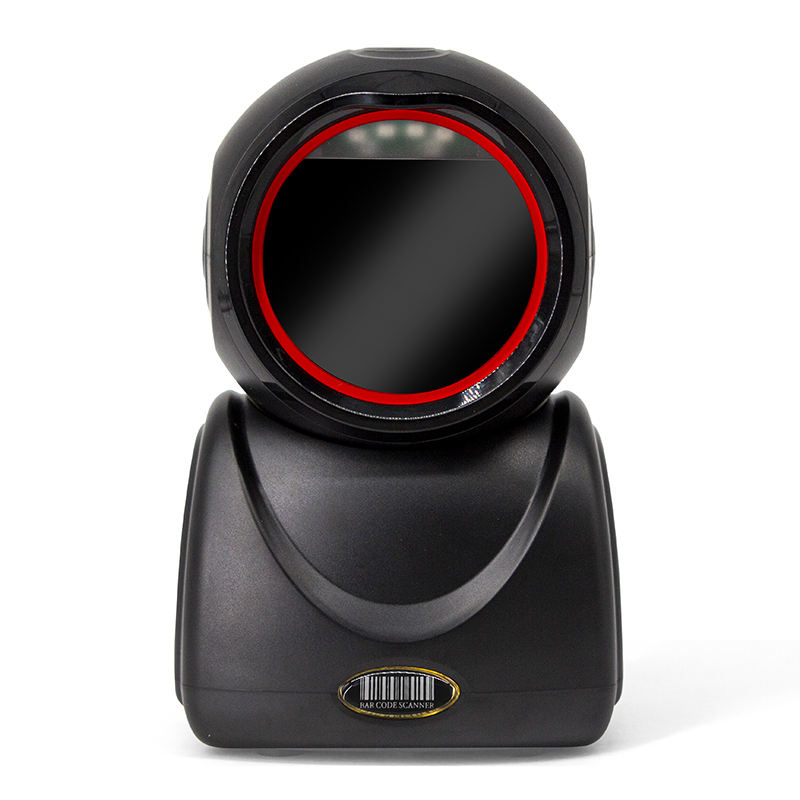

2D Desktop Barcode Scanner Platform – Black/White |
| Code Reading Mode |
CMOS (Global Exposure) |
| Pixels |
640×480 |
| Light Source |
617 nm Red LED |
| Scan Mode |
Omni-induction trigger / Manual / Continuous |
| Minimum Resolution |
0.127 mm (5 mil) @ Code 39, PCS=90% |
| Input Voltage |
5V DC ± 10% | Operating current: 175 mA typical |
| Field of View |
48° (H) × 30° (V) | Depth: 30° V × 48° H |
| Dimensions & Weight |
164 mm × 106mm × 84mm | 348g (excluding accessories) |
| Interface Support |
USB, USB-COM, RS-232 (optional) |
| Durability |
IP54 sealing class | 1.5m drop height | Cable: 1.8m straight line |
| Supported Barcodes |
1D: EAN13, EAN8, UPC-A, UPC-E, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS | 2D: QR, Data Matrix, PDF417 |
